Galvalume Steel Coil
1. High temperature resistance: good performance at temperatures above 300℃.
2. Corrosion Protection: Aluminum layer protects the steel interior.
3. Easy to Paint: Aluminized steel plate with perfect adhesion to give your finish a great look.
Product Introduction

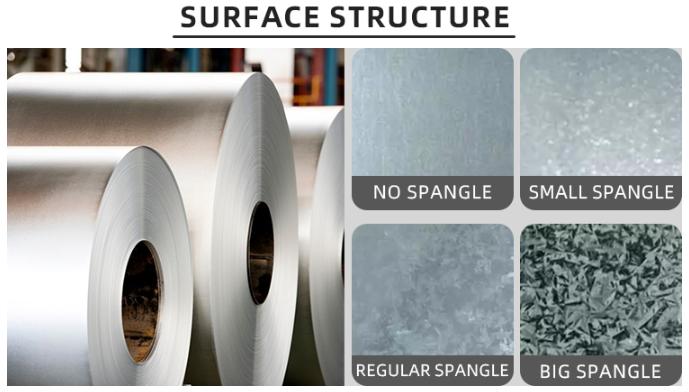

Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600℃. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.
Product Parameters
Technical Standard | EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653 |
Steel Grade | DC51D+AZ, DC52D+AZ, DC54D+AZ, DC53D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S450GD+AZ, S550GD+AZ |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.12-6.00mm,or customer's requirement |
Width | 600mm-1500mm,according to customer's requirement |
Type of Coating | Hot Dipped Galvalume Steel |
Al-Zn coating | 20-275g/m2 |
Surface Treatment | DRY,OIL,Chromate,Anti-finger print,Gr-free,etc |
ID | 508mm/610mm |
Coil Weight | 3-20metric ton per coil |
Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven |
Export market | Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc |
Application:
Construction field used as building material: roofing tiles, metal frame, partition board, windows and doors, making profiles, fencing panel, corrugated sheets, structural decking etc.
Auto Parts: car body shell, underpan, doors, fuel tank, stamping parts etc.
Metallurgy Industry: base plate for PPGL etc.
Electrical Industry: shell for electric appliances etc.
Standard & Grade:
ASTM A792-A792M--Standard Specification for Steel Sheet, 55 % Aluminum-Zinc Alloy-Coated by the Hot-Dip Process
Grade: CS TYPE A, CS TYPE B, SS230, SS255, SS275, SS340, SS550, FS, DS, HTS.
Galvalume steel production line with annual output of 150000 tons, which adopts the most advanced American GBNB and Germany's Siemens electrical control systems. Thickness from 0.14 mm to 1.5mm, and width from 900 mm to 1250 mm, and zinc coating from 30 - 275 g/m2, surface passivation and oil -coating can be performed. In addition, the company introduces a slitting machine, which can meet the customers' different requirements on the width. And Two roll-formed machines , which can produce wave roofing sheet and Trapezoidal corrugated.
