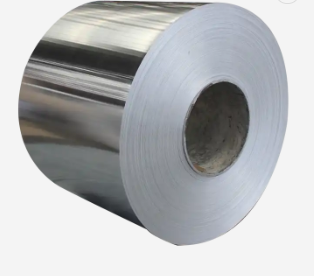

Carbon Galvanized Steel

For galvanized coils, the sheet steel is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with zinc melted to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Hot dip galvanizing: the molten metal reacts with the iron matrix to produce an alloy layer, so as to combine the matrix and the coating.

Cold galvanizing: the amount of galvanizing is very small, only 10-50g / m2, and its corrosion resistance is much different from that of hot-dip galvanized pipe.

Carbon Galvanized Steel

Technical Standard	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type	Galvanized Coil
Thickness	0.12-6.00mm, or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Type of Coating	Zinc
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
