Zinc Coating Steel

Direct Supply DX51D hot dipped galvanized steel coil DX51 ZINC coated Cold rolled Galvanized Steel

Coil/Sheet/Plate.galvanized coils, the thin steel plate is immersed in the molten zinc tank, so that a thin steel plate with a layer of zinc is adhered to the surface. It is mainly produced by continuous galvanizing process, that is, the coiled steel sheet is continuously immersed in a galvanized bath with molten zinc to make galvanized steel sheet; alloyed galvanized steel sheet. This kind of steel plate is also manufactured by hot dipping method, but immediately after leaving the tank, it is heated to about 500°C to form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc.

Standard	astm a526 a528 a444, a653, a792, jis g3302, en10142 en1012, etc
Grade	DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, DD52D+Z etc
Thickness	0.12-3.0mm (customize, above 3.0mm available)
Width	600-2000mm (customize)
Length	as customer requirements
Coil inner diameter	508mm/610mm (customize)
Zinc coating	20-600g/m2
Raw material	cold rolled base. (hot rolled base also available)
Technique	hot dipped. (electro also available)
Coil weight	3-8 tons
Tolerance	thickness +- 0.02 or +- 0.04, width +-5mm

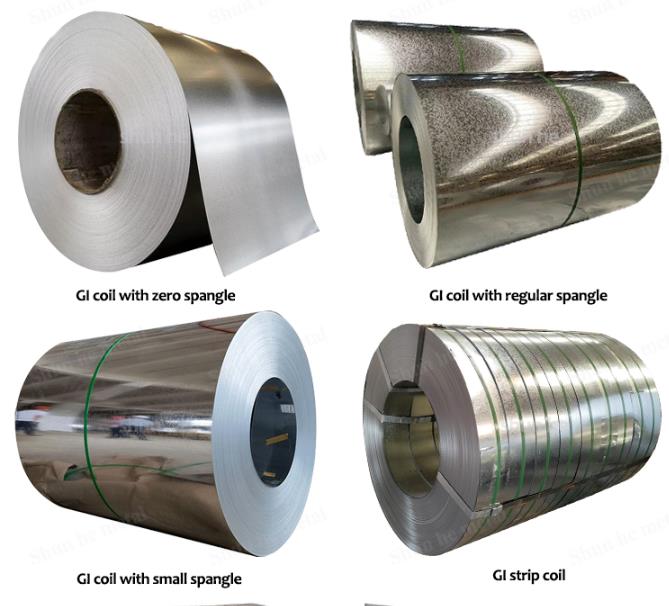

Spangle type	zero spangle, small spangle, regular spangle, big spangle
Hrb	Soft Hard (<60),Medium Hard (60-85), Full Hard (85-95)
Surface treatment	chromated/non-chromated, oiled/non-oiled, anti-fingerprints
Certification	CE, ISO9001-2008, SGS
Monthly output	17000 tons
Packaging	3 layers. kraft paper inside + water-proof plastic film in the middle + strong steel strips covered outside
Landing port	qingdao/shanghai/tianjin port
Payment terms	T/T, L/C, western union paypal etc
Delivery time	it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized
MOQ	as customer needs. reminder: more quantity reduce your purchase cost greatly
Inspection	third-party test
Cooperate brand	anshan steel, baotou steel, jiangsu shagang etc
